Multi axle modular trailer Goldhofer for sale in Mexico features a freely connectable, ultra light, high strength steel frame and independent hydraulic suspension. Goldhofer modular trailer's all wheel steering and remote control system allow it to maintain precise positioning even under heavy loads, in confined spaces, or on complex terrain, making it a global benchmark in the heavy lift transport industry.
Multi Axle Modular Trailer Goldhofer SPMT Price for Sale in Mexico
Multi Axle Modular Trailer Goldhofer SPMT Price for Sale in Mexico
Multi Axle Modular Trailer Goldhofer SPMT Price for Sale in Mexico
Multi Axle Modular Trailer Goldhofer SPMT Price for Sale in Mexico
Multi Axle Modular Trailer Goldhofer SPMT Price for Sale in Mexico
Name: Multi Axle Modular Trailer Goldhofer SPMT
Dimension: 22812mm*3000mm*1080(+280/-280)mm
Usage: Transport bridge and heavy duty cargo
Max Payload: 275 tons
Tires: 80 units
Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
Trailer Goldhofer spmt's overall design is centered around a modular concept, enabling unlimited expansion of transport capacity through flexible assembly. This modular architecture not only gives the Goldhofer modular trailer extreme adaptability but also allows for multiple trailers to be connected through standardized interfaces, enabling single transport loads exceeding 10,000 tons. Hydraulic multi axle trailer Goldhofer price also supports both horizontal and vertical connection options, perfectly suiting the transport needs of extra long, extra wide, and extra high cargo.
Multi axle modular trailer Goldhofer for sale in Mexico's frame structure utilizes high strength alloy steel and aircraft grade aluminum alloy composite materials. A special process is used to enhance the load bearing capacity of the main beam, allowing it to withstand extreme concentrated loads without deformation.

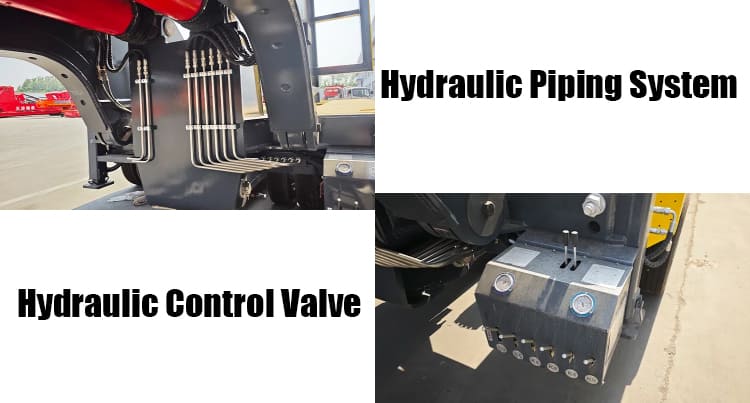

Multi axle low bed trailer Goldhofer for sale in Mexico's frame incorporates a built in hydraulic cylinder suspension system, with each axle independently loaded and pressure evenly distributed through hydraulic lines. This keeps the ground pressure to an extremely low level, effectively protecting the road surface structure. Goldhofer trailer price's frame utilizes multiple sets of high strength connecting forks and locating pins to ensure inter module joint strength far exceeds industry standards. Combined with a double row longitudinal steering tie rod system, this significantly reduces lateral sway during driving, allowing the extremely long trailer Goldhofer spmt to maintain precise tracking even during high speed cornering.

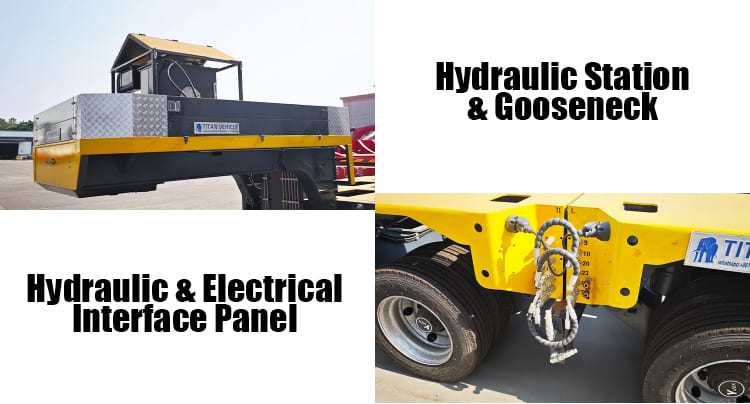

The steering system is the core technical highlight of the Goldhofer multi axle trailer for sale in Mexico. Goldhofer modular traile's all wheel steering mechanism utilizes a computer optimized steering plate and fixed length tie rods, coupled with a hydraulic assist mechanism, to automatically synchronize the wheels on each axle when the tractor turns. The system supports an optional powered gooseneck.

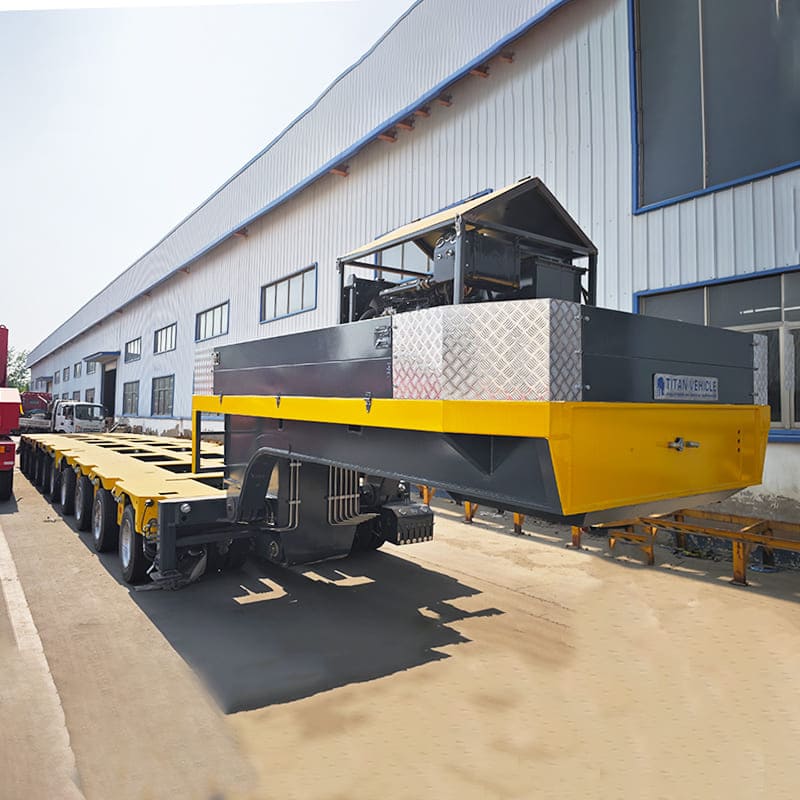

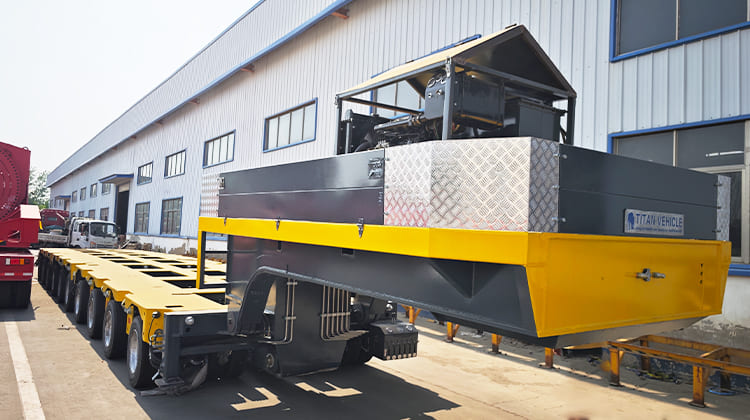

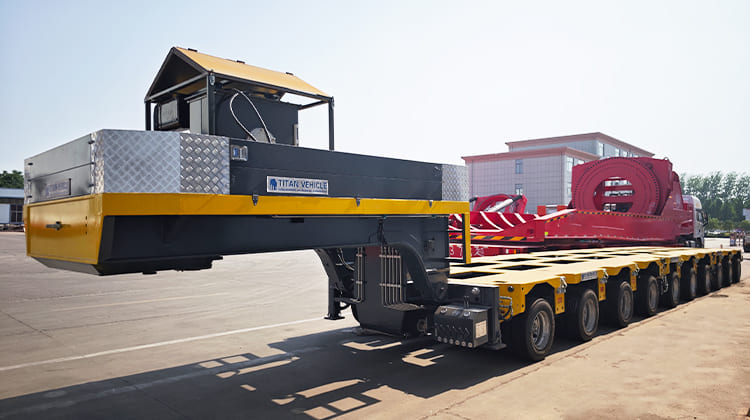

When equipped with an independent power unit, the hydraulic multi axle trailer Goldhofer price in Mexico can be hydraulically driven for autonomous propulsion and electronic steering, enabling precise positioning in confined areas such as bridge and tunnel construction without the need for a tractor. This design ensures that the multi axle modular trailer Goldhofer for sale maintains excellent maneuverability even when unpowered.
Multi axle low bed trailer Goldhofer for sale in Mexico's hydraulic suspension system demonstrates the trailer Goldhofer spmt's ability to handle extreme road conditions. Each axis is equipped with an independent hydraulic lifting cylinder, which, combined with heavy duty brackets, can achieve crane free loading and unloading. The goods can be placed directly on the transport platform by simply adjusting the suspension height.
