End dump truck trailer are primarily used to transport bulk materials such as sand, coal, and construction waste. End dump trailer can be unloaded quickly, improving loading and unloading efficiency, making them suitable for use on construction sites and in mining areas.
Dump truck semi trailer for sale in Guam is designed specifically for bulk cargo handling. Equipped with a hydraulic flap mechanism, end dump truck trailer facilitates quick unloading. End dump trailer's sturdy and durable structure adapts to various road and transport conditions, improving transport efficiency.

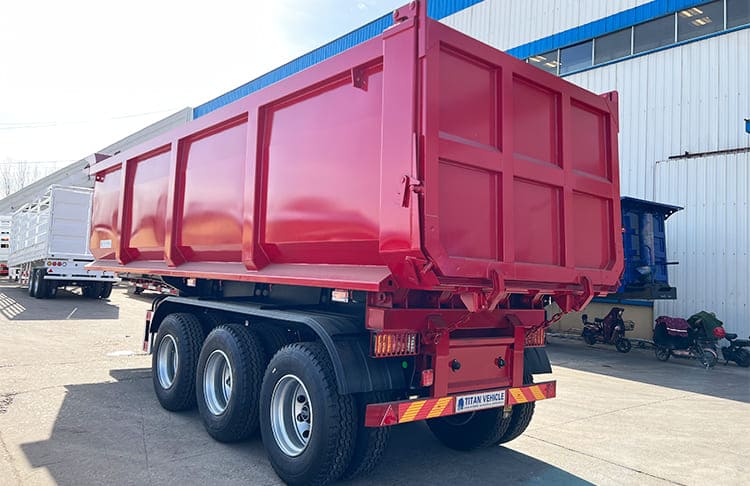

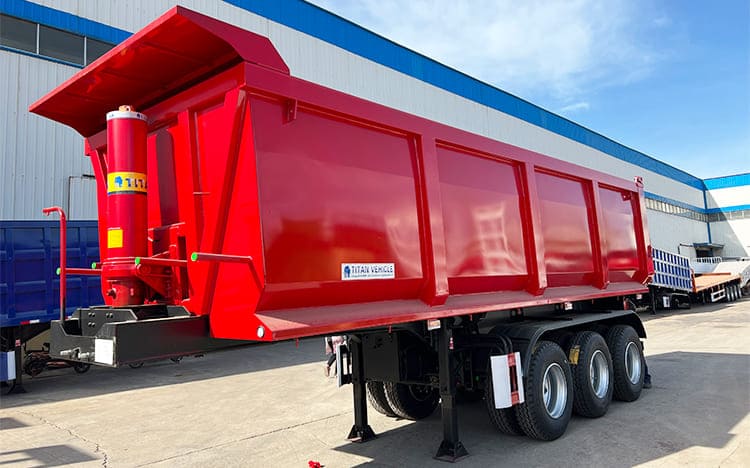

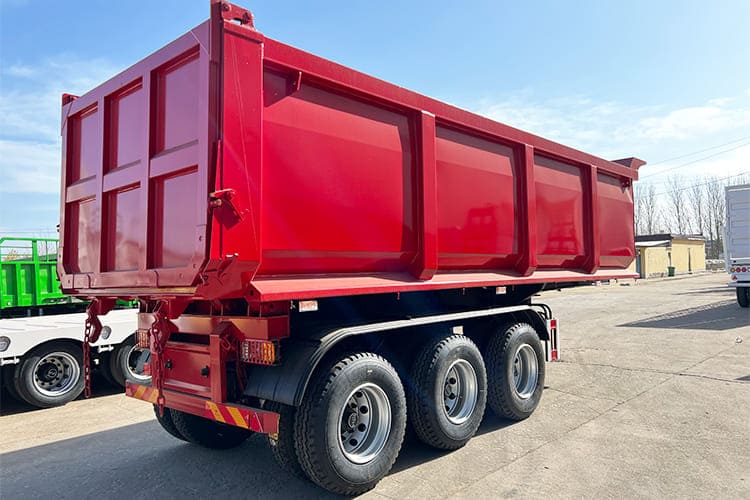

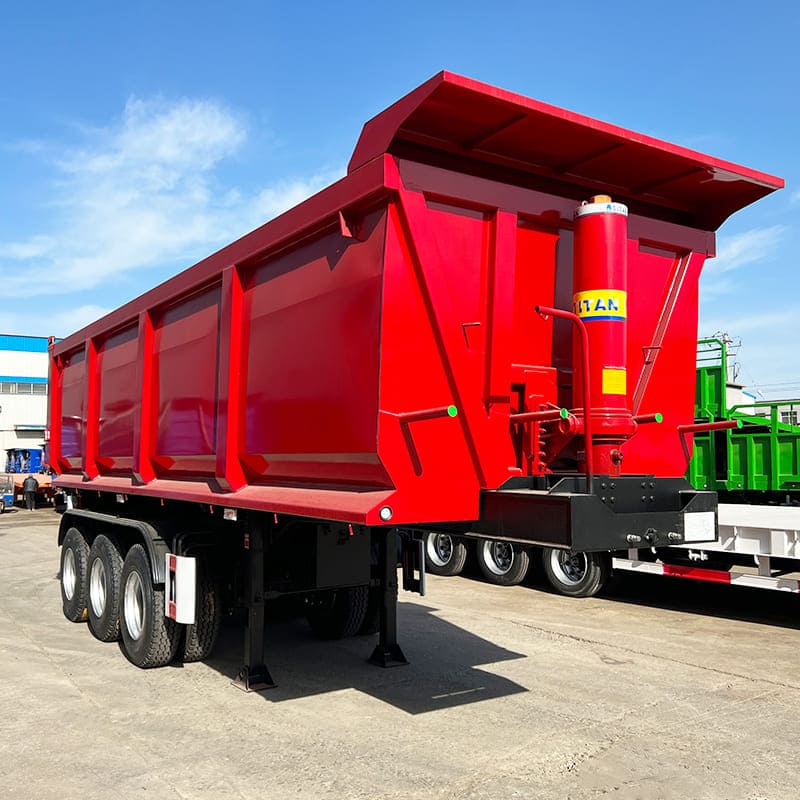

3 Axle End Dump Truck Semi Trailer for Sale in Guam
3 Axle End Dump Truck Semi Trailer for Sale in Guam
3 Axle End Dump Truck Semi Trailer for Sale in Guam
3 Axle End Dump Truck Semi Trailer for Sale in Guam
3 Axle End Dump Truck Semi Trailer for Sale in Guam
3 Axle End Dump Truck Semi Trailer for Sale in Guam

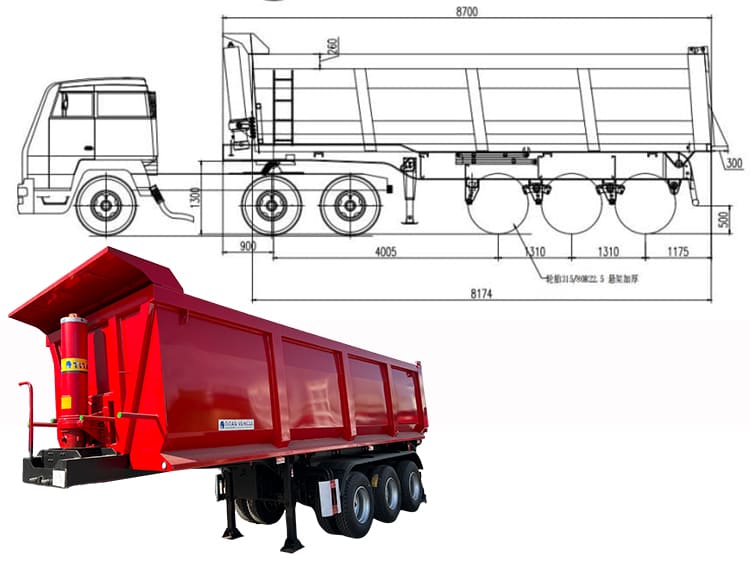

Dimension: 8700mmx2500mm x3482mm
Total volume:35cubic
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 Axle, 13T, FUWA

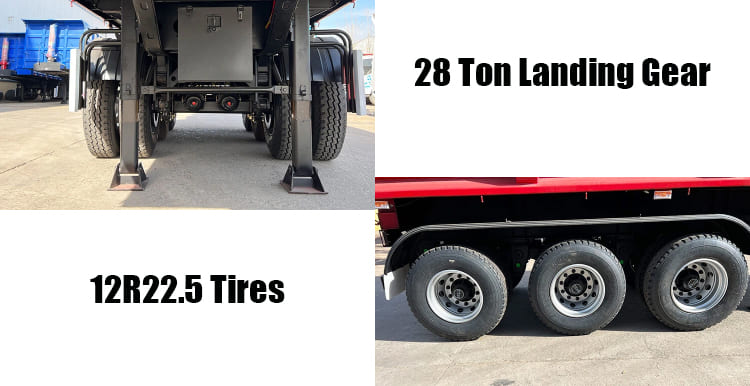

Tire: 12units, 12R22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
With its rational structural design and practical functional configuration, dump truck semi trailer for sale in Guam offer significant advantages in the freight transport sector. End dump truck trailer combine strong load carrying capacity, high loading and unloading efficiency, and ease of operation. End dump trailer are suitable for transporting a variety of bulk cargoes, including sand, gravel, coal, and ore. Their excellent stability during operation effectively reduces cargo damage and transportation risks.

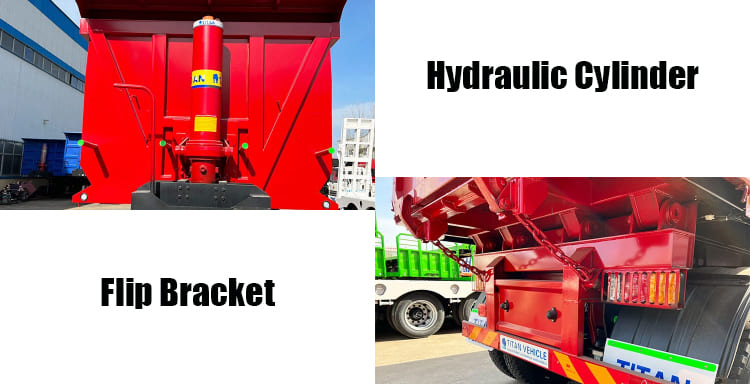

As the core power component of dump truck semi trailer for sale in Guam, the hydraulic cylinder delivers outstanding performance, offering strong thrust and stable retractability. It precisely controls the tilting angle of the cargo box, ensuring a smooth and orderly unloading process and avoiding incomplete unloading due to insufficient power. Its excellent sealing performance also adapts to complex operating conditions, reduces the risk of hydraulic oil leakage, and extends its service life.

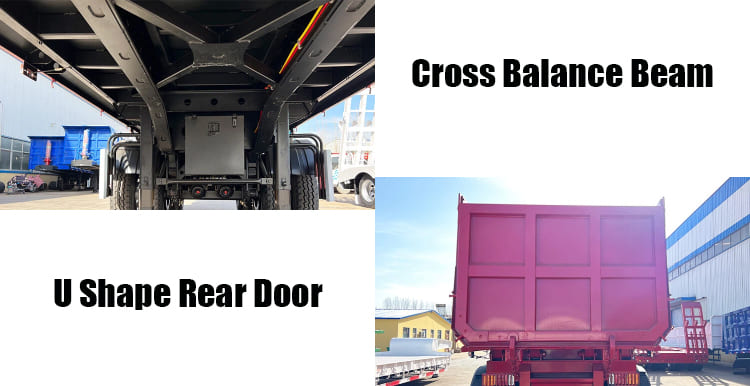

The U shaped cargo box design of end dump truck trailer for sale in Guam offers significant advantages. The curved structure not only improves cargo box volume utilization, allowing for greater loading capacity, but also reduces cargo residue. This is particularly true for sticky materials, as the curved inner walls guide the cargo during unloading, allowing for rapid emptying. The U shaped structure also distributes the load from the cargo against the box walls, enhancing the box's resistance to deformation and overall durability.
The main beam, the load bearing core of the end dump trailer for sale in Guam, is welded from high strength steel, offering excellent rigidity and fatigue resistance. It can effectively withstand the pressure of heavy cargo, reducing the risk of deformation or fracture even when fully loaded for extended periods. Furthermore, the main beam's optimal load bearing design ensures more even weight distribution, laying a solid foundation for driving stability.
Although the landing gear of the dump truck semi trailer for sale in Guam are small in size, they play a key role. They adopt an adjustable structural design and can flexibly adjust the height according to the flatness of the parking site, ensuring that the overall level and stability of the end dump truck trailer remain during loading and unloading, avoiding safety hazards caused by body tilting. Their supporting strength is sufficient to stably bear the weight of the entire vehicle and cargo, and they are easy to retract and unfold without affecting the normal driving of the end dump trailer for sale in Guam.
