Tipping trailer are mainly used to transport loose materials such as coal, sand, gravel, and earth, and are widely used in mines, construction sites, and infrastructure projects. The hydraulic system enables rapid self unloading, greatly improving loading and unloading efficiency and transportation turnover speed.
Tri axle hydraulic tipper truck trailer for sale in Guam Guded is a transport vehicle with a self unloading function. Hydraulic tipper trailer mainly relies on the hydraulic system to lift the rear of the car body to achieve rapid unloading. The tipping trailer has a sturdy structure and strong load bearing capacity, which is suitable for the medium and short distance transportation needs of various bulk materials.

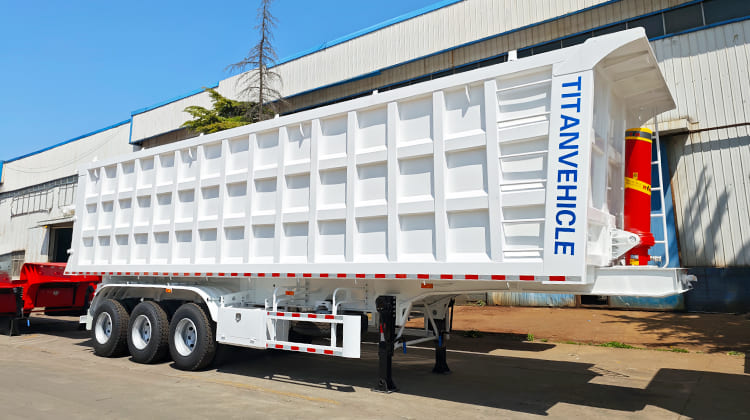

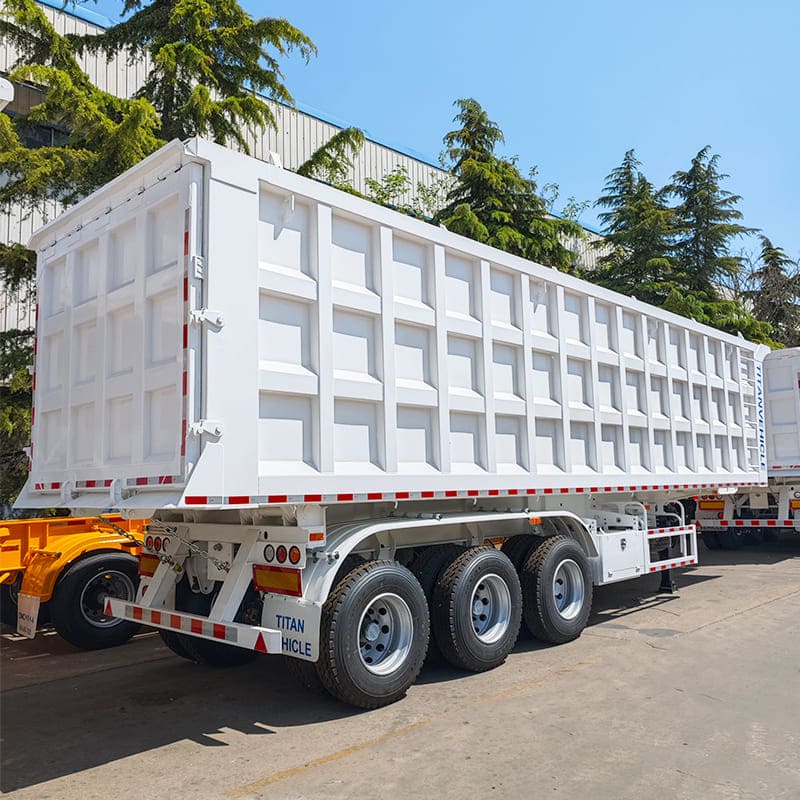

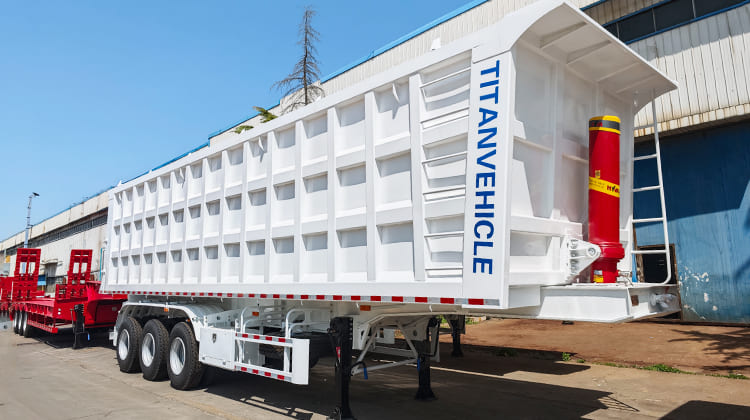

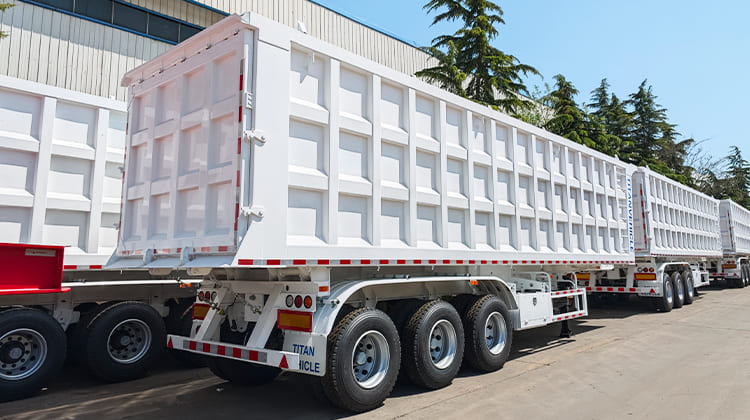

Tri Axle Hydraulic Tipper Truck Tipping Trailer for Sale in Guam Guded
Tri Axle Hydraulic Tipper Truck Tipping Trailer for Sale in Guam Guded
Tri Axle Hydraulic Tipper Truck Tipping Trailer for Sale in Guam Guded
Tri Axle Hydraulic Tipper Truck Tipping Trailer for Sale in Guam Guded
Dimension: 9000mmx2500mm x3420mm
Total volume:35cubic
Lifting System: Full set of HYVA lifting cylinder

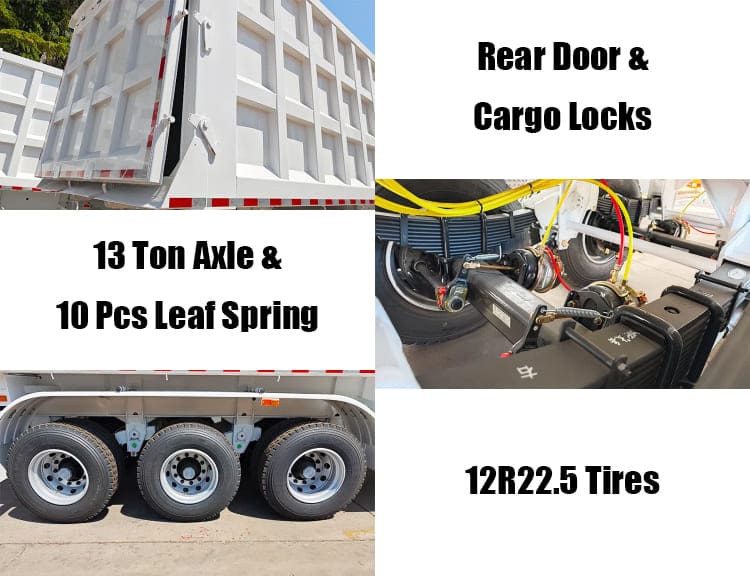

Axle: 3 Axle, 13T
Tire: 12R22.5

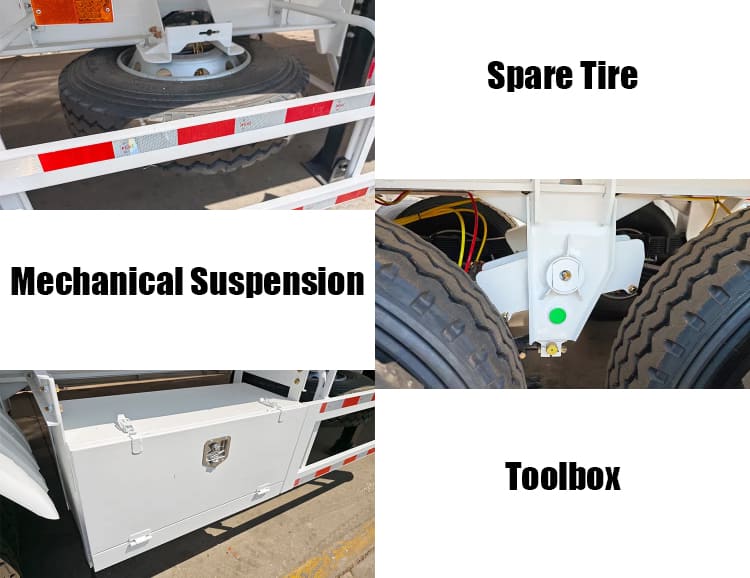

Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: 28 ton Landing Gear

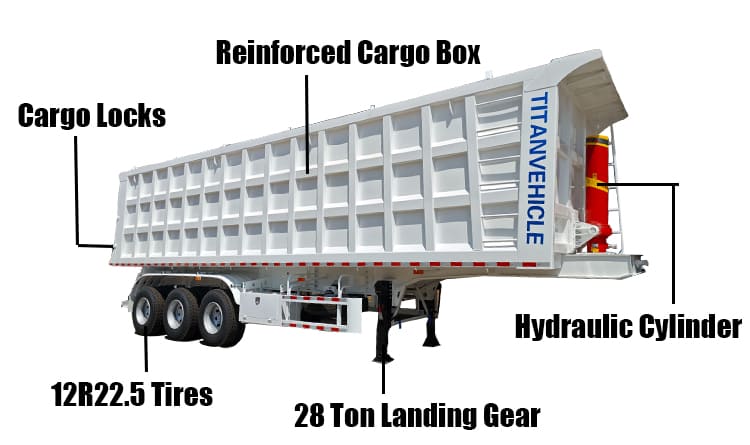

Overall advantages of tipper truck trailer
Fast unloading and good adaptability
The tri axle hydraulic tipper trailer for sale in Guam Guded uses a rear flip unloading method, which can quickly dump loose materials like sand, ore, and slag. Each unloading takes a short time, making it very suitable for construction sites with tight schedules.
Strong heavy load capacity
The frame and cargo box of the tipping trailer are made from strong materials, and with a well planned mechanical design, the maximum load can reach many tons, meeting the needs for carrying heavy cargo.
Safe and steady operation
The tipper truck trailer for sale in Guam Guded comes with several hydraulic locks and anti-rollover systems. The flip angle can be fixed during unloading to prevent safety problems caused by hydraulic failures.
Analysis of the advantages of key parts
Hydraulic cylinder: the main power part, reliable and long lasting
Good material: The hydraulic cylinder of the tri axle hydraulic tipper trailer is made from good quality seamless steel pipes through forging. The inside wall is carefully ground and then plated with a layer, making it resistant to corrosion and wear. It can work well in tough conditions like places with lots of dust and moisture.
Cargo box: strong and can last a long time, unloads smoothly
Strong structure: The cargo box of the tri axle hydraulic tipping trailer for sale in Guam Guded is welded using manganese steel plates. The bottom and side plates are thicker than those on normal trailers. The edges are made stronger to handle the hits and rubbing from hard things like stones and steel slag.
Good shape: The bottom of the cargo box of the tipper truck trailer for sale in Guam Guded has a smooth curved surface, and the back end is a bit narrower. When unloading, the stuff can slide down quickly along the box wall, leaving less behind. The inside wall of the box can have a special coating to stop things from sticking, making unloading even better.
Flip bracket: gives good support, can handle twisting and shaking
Good welding: The bracket of the tri axle hydraulic tipper trailer and the main beam are fully welded together, making the structure very stiff. It can take the big twisting force and hits during the flipping process without bending or breaking.
Good balance: The bottom of the bracket of the tipping trailer for sale in Guam Guded has several sets of extra support bars and cross beams. These, together with the axle, form a stable triangle shape that spreads out the pressure during unloading and makes the body shake less.
Main beam: the base for carrying weight, designed well for mechanics
Good beam shape: The tipper truck trailer for sale in Guam Guded uses an H shaped main beam. The height of the middle part and the thickness of the sides are made according to how much weight it needs to carry. This makes it much better at bending and dealing with the twisting force from uneven roads.
Good welding method: The main beam of the tri axle hydraulic tipper trailer is welded in parts. There's a space left to let the stress out, which stops too much stress from building up at the welds and makes it last longer.
