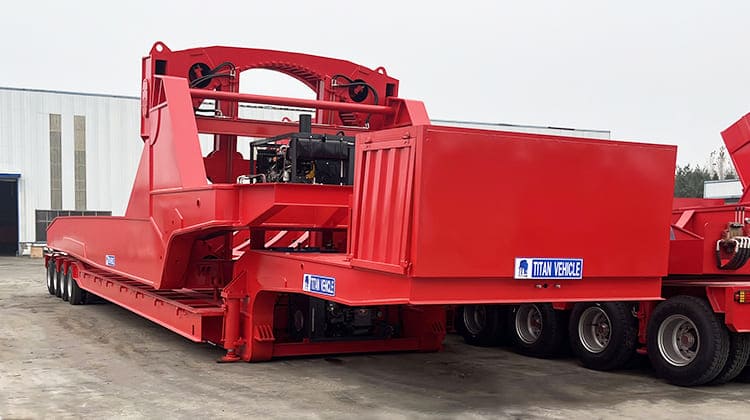

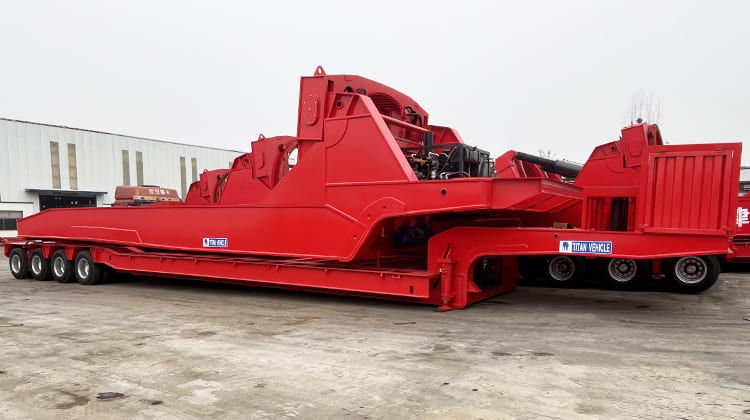

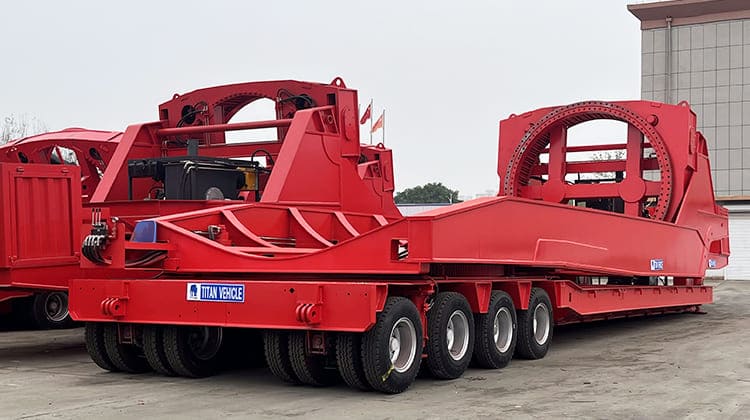

Windmill rotor blade adapter trailer are mainly used to transport extra long blades of wind turbine generators. Windmill rotor blade trailer can complete transfer tasks in complex road environments such as mountains and rural areas, and are indispensable vehicles in the wind power industry.
The windmill rotor blade adapter trailer for sale in Guam is an extra long, telescopic, specialized semi trailer designed specifically for transporting wind turbine blades. Windmill rotor blade trailer's frame length and steering angle are adjustable to accommodate blades of various sizes.
Windmill Rotor Blade Adapter Trailer for Sale in Guam
Windmill Rotor Blade Adapter Trailer for Sale in Guam
Windmill Rotor Blade Adapter Trailer for Sale in Guam
Windmill Rotor Blade Adapter Trailer for Sale in Guam
Windmill Rotor Blade Adapter Trailer for Sale in Guam
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m
Axle: 4 lines 8 axles
Tires: 32 units
Max rotation angle: 360°

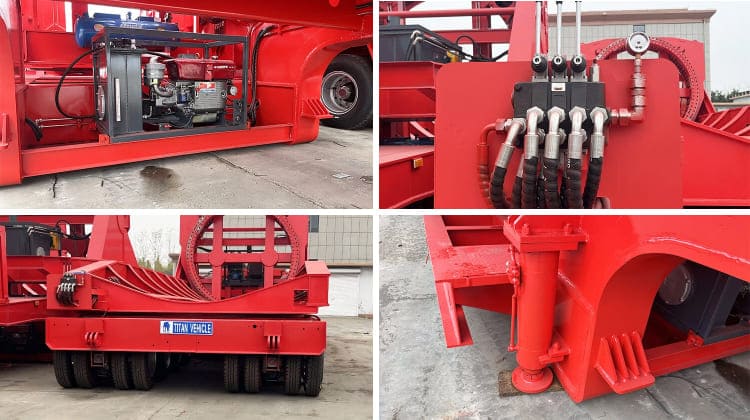

Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm
Utilizing a high strength structure and a multi axle steering system, the windmill rotor blade adapter trailer boasts excellent maneuverability, maneuverability, and high transport safety, making it a core transport equipment commonly used in the wind power industry.
As a dedicated tool for transporting wind power equipment, the windmill rotor blade trailer for sale in Guam leverages its targeted design to achieve core advantages in adaptability, safety, and stability. Customized designs for key components provide comprehensive protection for the wind turbine blades, adapting to the specific transport needs of the wind power industry.
Overall, the most prominent advantage of the windmill rotor blade adapter trailer is its high degree of customization. Its structure can be adjusted according to parameters such as blade length and curvature, accommodating the needs of navigating complex road conditions such as highways and mountain roads.
Simultaneously, the windmill rotor blade trailer for sale in Guam employs lightweight, high-strength materials, maximizing transport efficiency while ensuring load bearing capacity and preventing damage to roads from excessive weight.
The chassis, as the core load bearing structure of the windmill rotor blade adapter trailer for sale in Guam, employs an integral longitudinal beam design combined with a reinforced crossbeam layout to form a uniform stress system, effectively distributing the longitudinal load on the fan blades.
Key stress areas of the windmill rotor blade trailer are reinforced with strengthening plates to enhance the structure's resistance to deformation, prevent chassis wear caused by long term transportation, and solidify the foundation for load bearing safety.

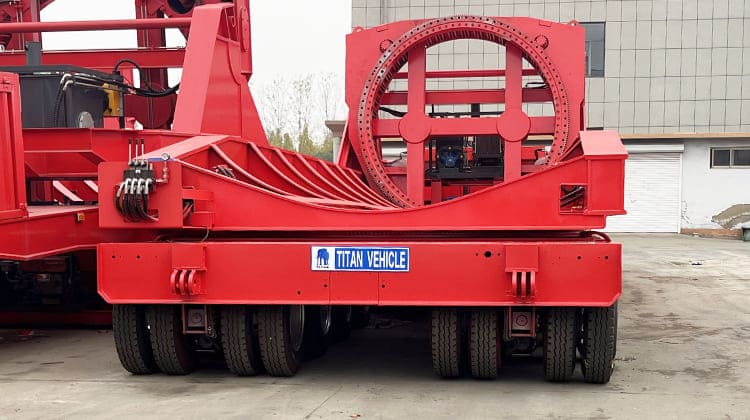

The windmill rotor blade adapter trailer's fixing device is crucial for fan blade protection. It utilizes multiple sets of adjustable arc-shaped clamps that precisely fit the curved surface of the fan blades, using flexible buffer components to reduce rigid contact damage. Combined with a linked fastening system, the fastening force can be adjusted in real time according to road conditions to prevent fan blade displacement due to bumps.
The windmill rotor blade trailer for sale in Guam's protective structure is comprehensive. Removable anti-collision guards are equipped at both ends of the fan blades to prevent collisions with obstacles during transportation. Flexible protective railings are installed on both sides of the vehicle to prevent lateral scrapes.
The bottom of the windmill rotor blade adapter trailer is equipped with shock absorbing support components to filter the impact of road bumps on the fan blades. These dedicated designs form a three dimensional protective net, providing full protection for the fan blades during transportation.
